Sanitary Barrier Washing Machine Hospital Barrier Washer Extractor

Sanitary Barrier Washing Machine Hospital Barrier Washer Extractor

hospital barrier washer extractor

sanitary washing machine for hospitals

barrier washer extractor with warranty

Lugar de origem:

Xangai, China

Marca:

YASEN

Certificação:

CE,ISO9001:2008

Contacte-nos
Solicite um orçamento
Detalhes do produto
Nome do produto:
Máquina de lavar com isolamento sanitário
Tamanho:
Tamanhos múltiplos
Operação:
Total automático e manual
Usado para:
Hospital
Aquecimento:
Aquecimento a vapor Aquecimento eléctrico
Material:
aço inoxidável
Termos de pagamento e envio
Quantidade de ordem mínima
1pc
Preço
$10,700.00/sets >=1 sets
Detalhes da embalagem
Embalagens de madeira para máquinas de lavar roupa
Habilidade da fonte
100 conjuntos por mês máquina de lavar roupa comercial
PRODUTOS CONEXOS
Contacte-nos
86-21-5789-9088
Contato agora
Descrição do produto

Sanitary Isolation Washing Machine Hospital Barrier Washer Extractor

Product Introduction:

The Sanitary Isolation Washing Machine, also known as a Hospital Barrier Washer-Extractor, is engineered to meet the most stringent infection control protocols in healthcare and laboratory environments.

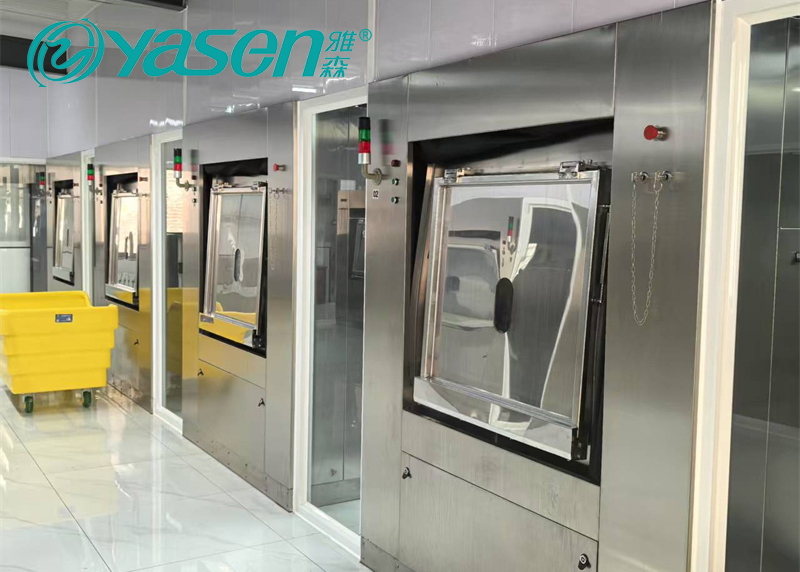

This specialized machine features a unique double-door, pass-through design that creates a physical barrier between soiled and clean areas. Contaminated linen from isolation wards, operating rooms, and infectious cases is loaded on the "dirty" side. After completing an automated high-temperature wash cycle with precise chemical injection, the sterilized load is unloaded from the opposite "clean" side, entirely eliminating the risk of cross-contamination.

Constructed from 316-grade stainless steel for superior corrosion resistance, it incorporates advanced thermal disinfection cycles validated to eliminate pathogens. This system is the cornerstone of a modern, safe, and efficient Central Sterile Supply Department (CSSD) or hospital laundry.

BW series barrier washer extractor machines meet the requirement of gem-free, dust-free, anti-static washing needs. With the isolating type washing equipment and isolating wall, it divides the laundry room into two separate independent operating areas, “Clean" area and “Non-Clean" area.

The auto-correction can be controlled by a switch automatically, this can ensure the door in the accurate position when loading and unloading.

Sanitary isolation washing machine for hosipital has a slider for the lock, the slider can prevent the lock loosing with high strengh and more safety.

The panel, cylinder,drum are all high quality stainless steel, good appearance and long life.

The computer and big screen with English (Chinese) interactive query are equipped can make operators run the machine more conveniently and reliably.

Heavy-duty design and anti-shock device makes running smoothly and shock to minimum.

Double-bolt locking system. Hospital barrier washer with anti-loosen functions, security and easy operation guaranteed.


BW-300E BW-500E BW-1000E
Rated Capacity(kg) 30 50 100
Drum Dimension(mm) Φ800*600 Φ980*675 Φ1200*900
Drum Volume(L) 301 508 1017
Drum Speed(r/min) The speed of laundry, uniform distribution, middle stripping and high stripping shall be set by the frequency converter as required. The speed of laundry, uniform distribution, middle stripping and high stripping shall be set by the frequency converter as required. The speed of laundry, uniform distribution, middle stripping and high stripping shall be set by the frequency converter as required.
Heating Type(Steam or Electric)(kw) 24(electric) Steam or Electric 48(electric)
Power Supply(V/Hz) 380V/220V/50Hz 380V/220V/50Hz 380V/220V/50Hz
Main Motor Power(kw) 4 5.5 7.5
Frequency Power(kw) 5.5 7.5 11
Cold and hot water interface(lnch) G1/2 40 2
Steam interface 6 25 1
Drainage interface 3 89 3
Air Pressure(Mpa) 0.4-0.6 0.4-0.6 0.4-0.6
Consumes of Water(kg) 1000 500 1000
Consumes of Electric(kw/h) 1.5 12
Dimension WxDxH(mm) 1380x1380x1800 1600x1600x1900 1860x1860x2150
N.W.(kg) 1500 2000 3250
Controller Bump: touch screen system Bump: touch screen system Bump: touch screen system
Sanitary Barrier Washing Machine Hospital Barrier Washer Extractor 0
Sanitary Barrier Washing Machine Hospital Barrier Washer Extractor 1
Sanitary Barrier Washing Machine Hospital Barrier Washer Extractor 2

Q1: What is the fundamental principle behind a Barrier Washing Machine?

A: The core principle of a Barrier Washing Machine is its sealed, pass-through design with two doors that are mechanically interlocked so they cannot be open simultaneously. This creates a physical "barrier" wall, ensuring a strict, unidirectional flow from the contaminated (soiled) side to the clean (sterile) side, thereby preventing cross-contamination.

Q2: In which applications is a Barrier Washing Machine absolutely essential?

A: A Barrier Washing Machine is non-negotiable in any environment where infection control is critical. This includes hospitals (especially for isolation wards and surgical linen), pharmaceutical cleanrooms, biotechnology labs, and food processing facilities where separating soiled and clean areas is mandated.

Q3: How does a Barrier Washing Machine validate its disinfection cycle to meet healthcare standards?

A: Our Barrier Washing Machine is equipped with a sophisticated control system that continuously monitors and data-logs key parameters like temperature, time, and chemical concentration during the thermal disinfection rinse. This provides a verifiable report for each load, ensuring compliance with standards like EN 14065 and providing a full audit trail for accreditation.

Q4: What are the critical design features of the drum and interior in a Barrier Washing Machine?

A: The interior of a Barrier Washing Machine is constructed from high-grade, corrosion-resistant AISI 304 or 316L stainless steel. The drum is designed with specially engineered baffles to ensure thorough cleaning and rinsing while being gentle on fabrics. All corners are coved and surfaces are smooth to prevent microbial adhesion and facilitate easy cleaning.

Q5: Can a Barrier Washing Machine be integrated into our existing automated laundry handling system?

A: Yes, modern Barrier Washing Machines are designed for integration. They feature standardized communication protocols (like Ethernet/IP) and can be seamlessly connected to automated linen tracking systems (using RFID/Barcode), conveyor belts, and laundry management software for a fully automated, hands-off workflow from soiled to clean.

Q6: What kind of service and maintenance support is crucial for a critical asset like a Barrier Washing Machine?

A: Given its critical role, a Barrier Washing Machine requires a dedicated service agreement. We offer priority support with guaranteed response times, remote diagnostics capabilities, and certified technicians trained specifically on the mechanical and microbiological validation protocols of barrier equipment to minimize downtime.

Q7: Beyond the barrier itself, what operational efficiencies does this machine offer?

A: While infection control is the primary goal, a Barrier Washing Machine also delivers significant efficiencies. It automates the sorting and transfer process, reduces labor, and incorporates advanced water and energy recovery systems, leading to a lower total cost of ownership per kilogram of laundry processed.

Sanitary Barrier Washing Machine Hospital Barrier Washer Extractor 3
Sanitary Barrier Washing Machine Hospital Barrier Washer Extractor 4


Sanitary Barrier Washing Machine Hospital Barrier Washer Extractor 5


Sanitary Barrier Washing Machine Hospital Barrier Washer Extractor 6


Middle East Africa European And Amercian Area Asia
Products Sea Transport (Door to Door) Deliver Time(Cheaper)
15-22 Days 25-40 Days 15-35 Days 6-14 Days
Spare parts Express(Door to Door) Deliver Time(Fastest)
DHL 4 Days 5-6 Days 3-4 Days 2 Days
FedEx 5 Days 6 Days 4-5 Days 3-4 Days
UPS 6 Days 6 Days 6-7 Days 5-6 Days
TNT 6-7 Days 6-7 Days 5-6 Days 4-6 Days
Air Transport Deliver Time(Fastest)
4-5 Days 5-8 Days 4-6 Days 1-3 Days
